Small welded bowJHT-10Small welded bow machine
Ribbon width3 mm
Working rangeRibbon length 95–140 mm
OutputApprox. 700 pcs/h
Choose a Bow Machine by Bow Type and Working Range
Start with the finished bow type, then compare ribbon width, working range and output.
Tied & welded
Tied bowJHT-20Automatic bow tying machine
Ribbon width2–10 mm
Working rangeRibbon length 70–240 mm
OutputApprox. 1,800 pcs/h
Flat
Flat bowJHT-30Flat bow machine
Ribbon width3–12 mm
Working rangeFinished bow 18–50 mm
OutputApprox. 700 pcs/h
Large & composite
Large decorative bowJHT-40Large decorative bow machine
Ribbon width3–25 mm
Working rangeRibbon length 110–380 mm
OutputApprox. 900 pcs/h
Composite ribbon bowJHT-100Composite ribbon bow machine
Ribbon width12–30 mm
Working rangeFinished bow 25–100 mm; tail 45–250 mm
OutputApprox. 600 pcs/h
Bow tie, fishtail & figure-eight
Bow tieJHT-70BBow tie making machine
Ribbon width12–30 mm
Working rangeFinished bow 25–45 mm
OutputApprox. 600 pcs/h
Fishtail bowJHT-80Fishtail ribbon tying machine
Ribbon width6–12 mm
Working rangeRibbon length 90–140 mm
OutputApprox. 700 pcs/h
Figure-eight bowJHT-90BZFigure-eight bow machine
Ribbon width3–12 mm
Working rangeFinished bow 24–60 mm
OutputApprox. 700 pcs/h
Output figures are approximate under standard ribbon and size conditions. Some models use ribbon length; others use finished bow size. Send both measurements when available.
Tell Us About the Ribbon and Finished Bow
Tell us the ribbon material, width and surface finish, together with the finished bow size. We may ask for a ribbon sample when the material is difficult to feed or fold.
Our bow machines work with prepared ribbon; they do not weave ribbon from yarn. For ribbon production, see our ribbon needle loom machines.
Ribbon face
Tell us whether the front, back or both ribbon faces remain visible in the finished bow.
Coating and stiffness
Send a ribbon sample if it is coated, stiff, unusually thick or difficult to fold.
Finished bow dimensions
Provide the overall bow dimensions and tail length, not only the ribbon width.
Center wrap and tail shape
Include a clear photo of the center wrap, loops and tails. A different shape may require different bow-forming parts.

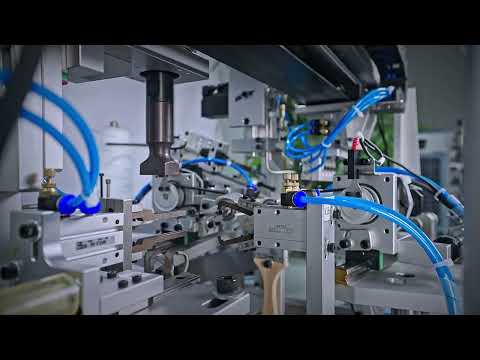

Watch a Bow Being Made
Watch us run one bow-making cycle, from ribbon feeding to the finished bow.

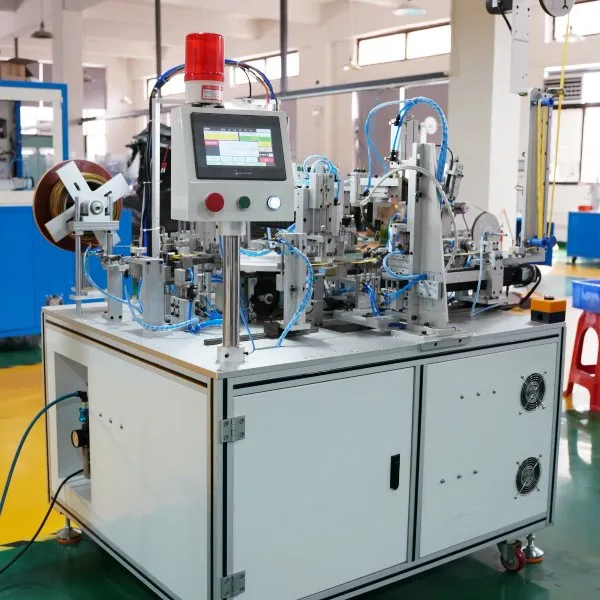

Machine Details, Trial Run and Finished Bows

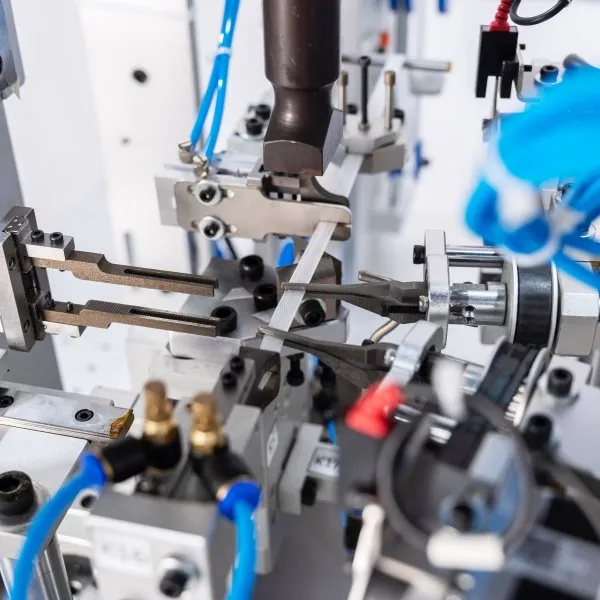

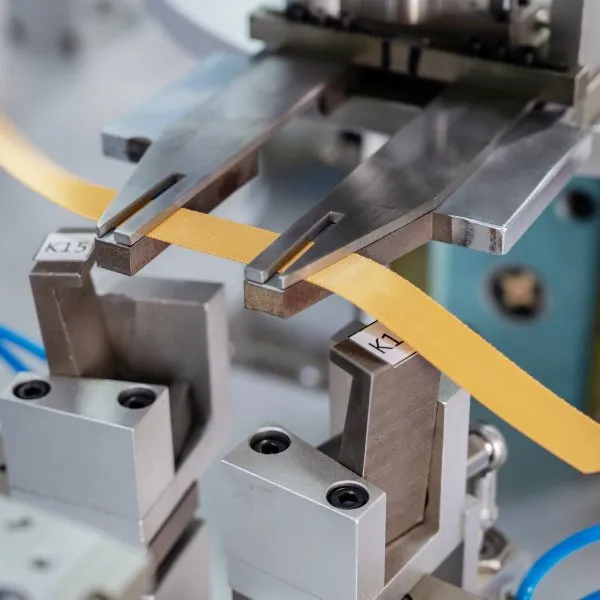

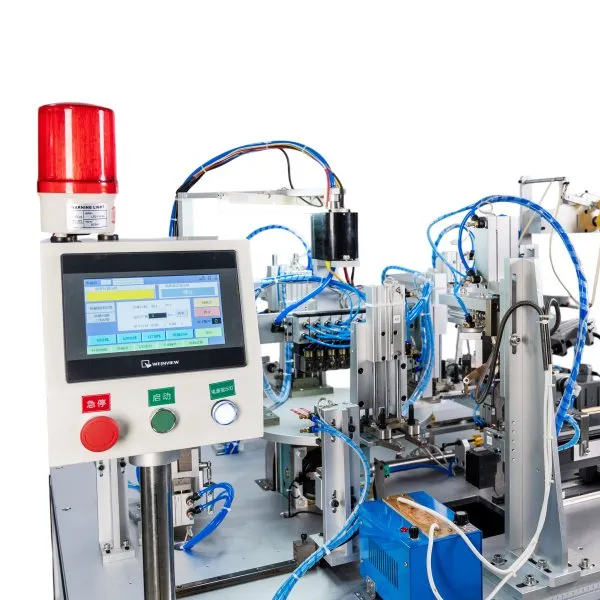

During a trial run, we look at ribbon feeding, the bow-forming area and the control panel. We then compare the finished bow with your sample, especially the center wrap, loops and tails.
Questions Before You Order
What electrical details should I send?
Send your factory voltage, frequency and phase. We confirm the electrical setting before the order.
What affects the machine quotation?
The quotation depends on the bow type, ribbon width, finished size, required output, electrical setting and any additional bow-forming parts.
Can I order one machine?
For most models, you can order one machine. We state the MOQ and delivery terms in the quotation.
What documents and support are included?
We state the OEM documents supplied and the 1-year after-sales support in the order documents.
Send Your Bow Photo for a Machine Quote
Send your bow photo first. Add the ribbon width and finished size when available. We will ask for any missing details before we quote.
Bow photo or short videoInclude front, back and tail views when possible.
Ribbon width and materialNote whether the ribbon is coated, stiff or unusually thick.
Finished bow and tail sizeProvide the finished bow dimensions and tail length.
Output, electrical setting and destinationInclude the target output, voltage, frequency, phase and destination country.
