An Introduction to Textile Braiding Machines

Textile braiding machines (sometimes searched as “braider machine”, “braider”, or even “plaiting machine” in some markets) help manufacturers make consistent ropes, cords, shoelaces, lace trims, and flat braids from yarns such as polyester, nylon, cotton, and PP.

If you are comparing a rope braiding machine, a yarn braider, or other braiding equipment, this guide explains the basics and what matters for choosing the right setup.

What Is a Textile Braiding Machine?

A textile braiding machine interlaces multiple yarn carriers in a controlled path to form a braid. Compared with manual braiding, an industrial braider improves consistency, repeatability, and output.

In most textile braiders, the machine’s goal is simple:

keep yarn feeding stable,
keep tension consistent,
keep take-up (winding) coordinated,

so the braid structure stays uniform across long runs.

Video Demo

A short running demo helps you quickly understand carrier motion, braiding formation, and take-up behavior.

What Can You Produce?

A textile braider is commonly used for:

Ropes and cords for apparel, packaging, home textile, and general textile uses
Shoelaces and drawcords for footwear and garment brands
Lace braids and decorative trims for fashion and soft goods

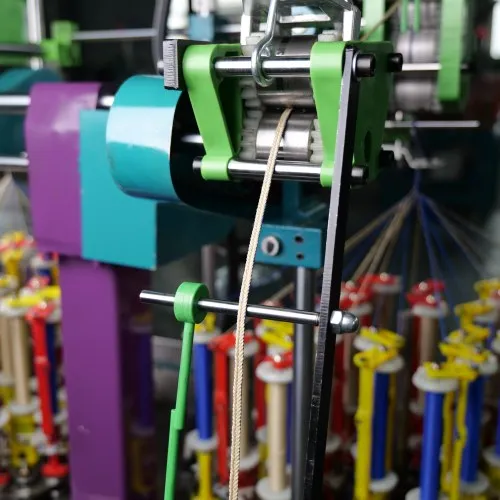

Flat braids / narrow braids for tapes, bindings, and strap-like components
Specialty textile braids (based on your structure and material requirements)

This is why “rope braiding machine”, “cord braiding machine”, and “lace braiding machine” often describe the same product category from different application angles.

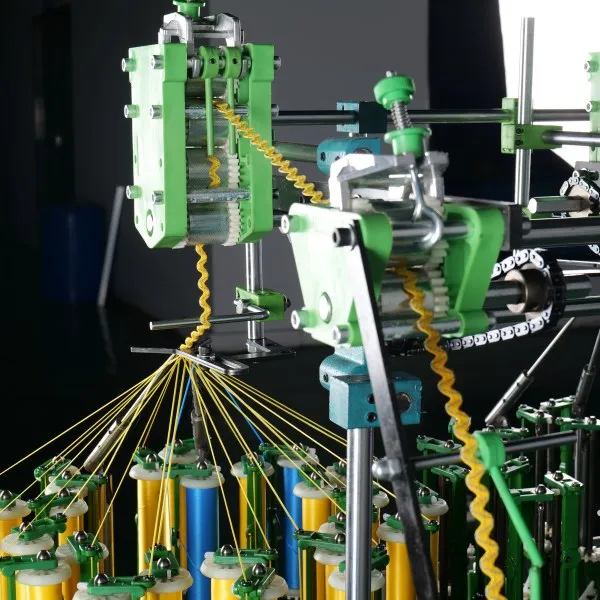

How Does a Braiding Machine Work?

Most textile braiding machines share the same core flow:

1. Carriers move in a repeating path

Carriers hold bobbins and move around the braiding point.

2. Yarns interlace at the braiding point

The crossing pattern forms the braid structure.

3. A take-up device pulls and winds the braid

Stable take-up is critical. Poor take-up coordination often causes loose structure, uneven appearance, or inconsistent diameter.

Key Components You Will Hear About

Carriers: hold and guide yarn supply (often described by carrier count)
Bobbins: supply yarn to carriers
Tension devices: stabilize yarn tension
Take-up device: pulls and winds the finished braid into a package

Two Practical Ways to Classify “Types of Braiding Machines”

People use “types” in two different ways. This is where many introductions become confusing, so it’s worth making it clear.

Type A: By braider mechanism (carrier motion system)

Common textile braider families include:

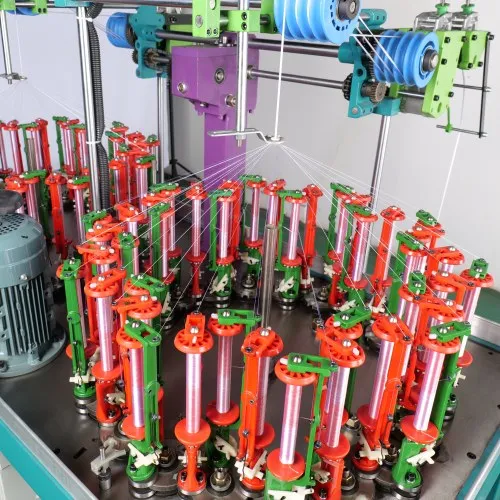

Maypole braiding machine (maypole braider): carriers move in a circular path around a center
Track and column braider: carriers are guided by track/column paths to create the interlacing movement

(You will see naming variations across suppliers. The practical takeaway is that mechanism families influence how carrier motion is implemented and what braiding patterns and production setups are commonly used.)

Type B: By braid structure / output form

From a textile production perspective, buyers usually care more about:

Round braid vs flat braid
Solid vs hollow structure (depends on product design)
Plain vs twill braid patterns (common in circular braiding terminology)

If you are unsure which “type” you need, starting from structure and take-up requirements is usually the fastest path to a correct recommendation.

How Many Carriers Do You Need?

Carrier count (for example 12/16/24/32) is one of the first things buyers search, and it directly affects coverage, yarn arrangement, and appearance. In general:

fewer carriers can suit simpler structures,
more carriers can support higher coverage and more complex yarn layouts.

Instead of choosing only by carrier count, decide with your product target:

braid structure (round/flat),
target size/hand-feel/appearance,
material behavior (stretch, friction, stiffness),
output and take-up package requirements.

What Information Should You Prepare for Model Selection?

To recommend the right textile braiding setup (and avoid back-and-forth), prepare:

Finished product: rope/cord/shoelace/lace/flat braid
Braid structure: round or flat (and any special pattern)
Material: polyester/nylon/cotton/PP (or other)
Target size / appearance requirement (photo or sample helps most)
Output target (your expected capacity)
Take-up / package preference (spool, reel, etc.)
Local voltage

This is also the fastest way to get a useful quotation, not just a generic price range.

Common Quality Problems (and What Usually Causes Them)

If you want stable, repeatable braid quality, watch these items:

Uneven tension → inconsistent appearance and diameter
Take-up mismatch → loose structure, uneven package formation
Worn carriers / poor bobbin preparation → snags, fuzz, broken ends
Material change without adjustment → the same setting may not work for different yarn types

A good braiding line is not only the machine. It is machine + tension control + take-up + correct consumables.

If you want a fast recommendation, share:
product type + braid structure + material + target size + output target.

For more details on our braiding solutions, review our category page here.

FAQ

What is a textile braiding machine used for?

A textile braiding machine is used to produce braided ropes, cords, shoelaces, lace trims, and flat/narrow braids with consistent structure and repeatable quality.

What is the difference between a rope braiding machine and a yarn braider?

In many textile contexts, the terms describe the same braiding category from different angles. “Rope braiding machine” focuses on the finished product, while “yarn braider” focuses on the material feeding and braiding process.

How do I choose the right carrier count?

Carrier count affects coverage and yarn arrangement. The best choice depends on your braid structure (round/flat), appearance requirement, material behavior, and take-up package goals—not only the number itself.

What information do you need to recommend a machine?

Finished product type, braid structure (round/flat), material, target size/appearance (photo/sample helps), expected output, take-up preference, and local voltage.
