Industrial Bobbin Winding Machines for Textile & Thread Production

Credit Ocean supplies industrial winding equipment for textile mills and sewing thread lines, covering bobbin winding, cone winding, thread winding, and precision rewinding.

Small note: Designed for industrial textile winding lines, not for home sewing accessories or hobby yarn winding.

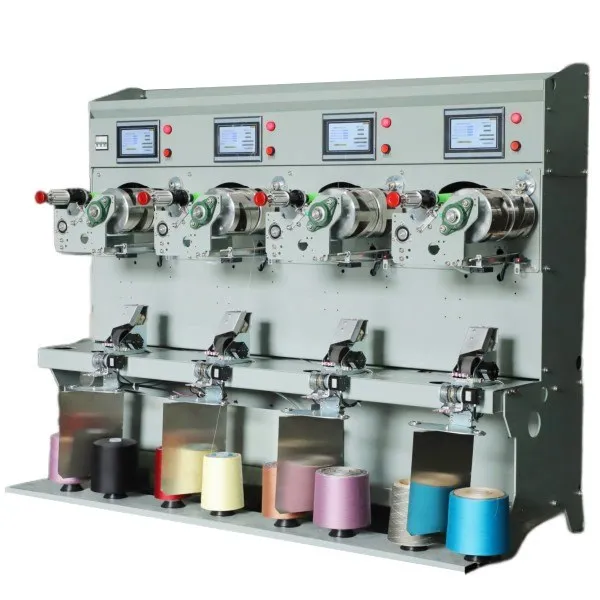

yarn winding machine

Start with Your Winding Process

Pick your workflow and we will match the configuration and spec range.

  • Sewing thread winding for production lines
  • Bobbin rewinding and thread rewinding
  • Cone winding for weaving and knitting preparation
  • Precision rewinding with programmable package build
  • Hank-to-Cone conversion after dyeing

If your winding is part of braid or narrow-fabric production, you may also check our braiding machine and needle loom.

Request a Spec Recommendation

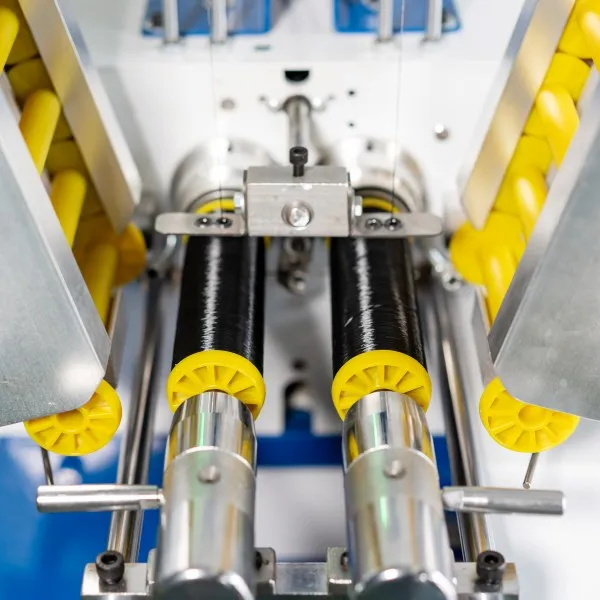

winding machine working

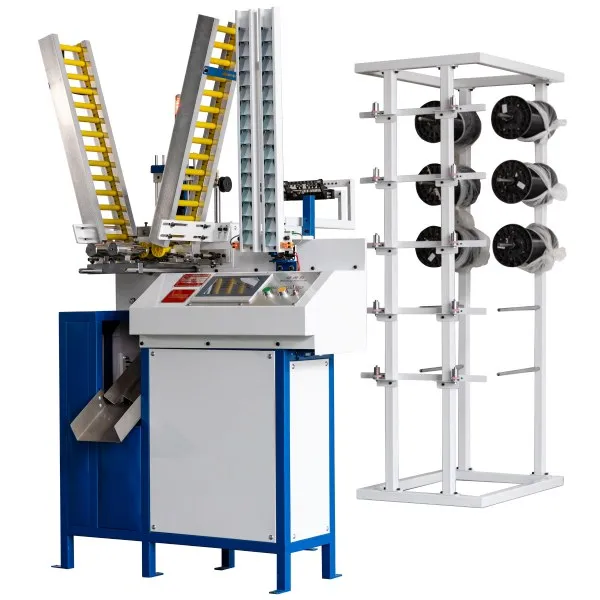

winding machine overview

Spec Snapshot

Achievable process speed depends on yarn type and count, package size, tension settings, and winding parameters. We confirm these fields first:

  • Speed: RPM and line speed (m/min)
  • Traverse length
  • Take-up package: shape, diameter, weight
  • Supply package diameter
  • Spindles/heads and layout
  • Tension control and yarn-end handling
  • Power and voltage/frequency

Bobbin Winding Machine Product Line

automatic thread winding machine

Automatic Thread Winding Machine

Precision cross winding for stable cone packages in high-volume production.

Key specs

  • Type of winding: precision cross winding
  • Mechanical speed: up to 10,000 rpm (process-dependent)
  • Line speed reference: up to 1,000 m/min (process-dependent)
  • Traverse length: 3 in to 6 in
  • Take-up package diameter: up to 320 mm
  • Package weight: up to 10 kg
  • Supply package diameter: up to 160 mm
  • Take-up tubes: cone taper 1°30’ to 5°57’
  • Drive: individual drive per spindle
precision yarn rewinding machine

Precision Yarn Rewinding Machine

Digital or precision winding with programmable package build for high consistency.

Key specs

  • Type of winding: digital or precision
  • Mechanical speed: up to 1,200 m/min (process-dependent)
  • Package shape: freely programmable
  • Traverse length: 25 to 250 mm, infinitely variable
  • Take-up package diameter: up to 260 mm
  • Package weight: up to 5 kg
  • Supply package diameter: up to 280 mm
  • Yarn count range: 10d to 3000d
  • Spindles/heads: 6 per section, scalable up to 96
  • Power consumption reference: ~160 W per spindle
  • Installed power reference: ~300 W per spindle
thread rewinder machine

Thread Rewinder Machine

Single-spindle rewinding for controlled bobbin handling and stable output.

Key specs

  • Voltage: 220/380V
  • Control: single spindle independent control, automatic yarn-end cutting
  • Power: 0.75 kW
  • Mechanical speed: 4000 rpm
  • Bobbin size range: 50 to 210 mm
  • Machine size: 1200 × 1400 × 1600 mm
  • Net weight: 140 to 145 kg
high speed thread winding machine

High-Speed Thread Winding Machine

Multi-spindle configuration for fast winding with package shape flexibility.

Key specs

  • Spindles: 4
  • Max winding speed: 1000 m/min (process-dependent)
  • Package shapes: horn-type, column-shaped, cone-type
  • Tube angle range: 2°20’ to 5°57’ and 0° options by package type
  • Max outer diameter: 115 mm
  • Total motor power: 1.5 kW
  • Machine size: 2.0 × 0.88 × 1.5 m
  • Net weight: 650 kg

Other Winding Machines

These models are commonly selected based on yarn type and package requirements. We recommend the right configuration after reviewing your spec.

single cone winding machine

Single Cone Winding Machine

Typical use: stable cone packages for production preparation and custom batches

fully automatic thread winding machine

Fully Automatic Thread Winding Machine

Typical use: high-volume lines where automation and consistency matter most

hank to cone winding machine

Hank-to-Cone Winding Machine

Typical use: post-dyeing conversion from hanks/skeins to cones

yarn winding machine Component

Accessories and Spare Parts

To keep winding quality stable over long runs, we provide compatible accessories and consumables based on your machine configuration:

  • carriers and bobbins
  • take-up and guiding components
  • tensioning-related parts

See Our Winding Machines in Action

Watch a short demonstration video to understand winding stability, package build consistency, and operating workflow.

Why Credit Ocean

  • Industrial, spec-matched recommendations instead of generic one-size claims
  • Support for bobbin winding, thread winding, cone winding, and precision rewinding workflows
  • Practical support: manuals, video guidance, remote troubleshooting, installation support options
Get an instant quote
Credit Ocean Team

FAQ

FAQ

What applications are these winding machines designed for?

They are designed for industrial textile and sewing thread production lines, including thread winding, bobbin rewinding, cone winding, and precision rewinding. They are not intended for home sewing accessories or hobby yarn winding.

FAQ

Do the listed speeds apply to every yarn and package?

No. Achievable process speed depends on yarn type and count, package size, tension settings, and winding parameters. We recommend a stable speed range for your specific application.

FAQ

What information do you need to recommend the right model and quote accurately?

Yarn type, target package type and dimensions, traverse requirement, expected speed range, spindle/head requirement, and local voltage/frequency.

FAQ

Can you support special yarns and technical yarns?

Yes. We can configure solutions for textured/flat filaments, covered yarn, elastic yarns, silk, and fine technical yarns, depending on the winding target and package requirements.

Get a Matched Quote

Send your yarn type, target package, package size, traverse requirement, spindle/head requirement, and voltage/frequency. We will recommend a suitable configuration and quote accurately.
