Credit Ocean configures complete label-weaving setups for woven logos, care labels and jacquard tapes. We review the artwork, finished size, color count and finish style first, then match the rapier loom, jacquard head, cutter and electrical setup before quoting.
A woven label is made from yarn on the loom. A printed label uses ink on ribbon. A sewing machine attaches a finished label to the garment.
The logo and letters are formed by warp and weft yarn. Use it for care labels, brand labels, satin labels, taffeta labels and damask labels.
Ink is printed onto blank ribbon. It can look similar from far away, but the production machine is different.
A sewing machine attaches the finished label to fabric. It does not weave the label itself.
For label weaving, logo detail, color count, width and finish style decide the setup. We check these details first, then choose the jacquard head, working width and cutter.

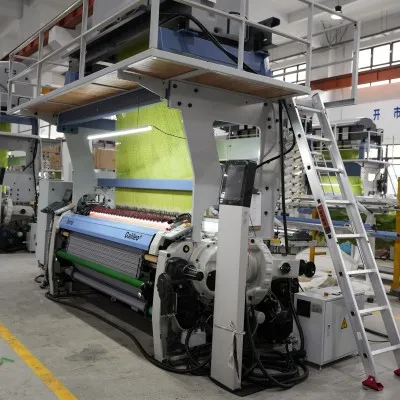

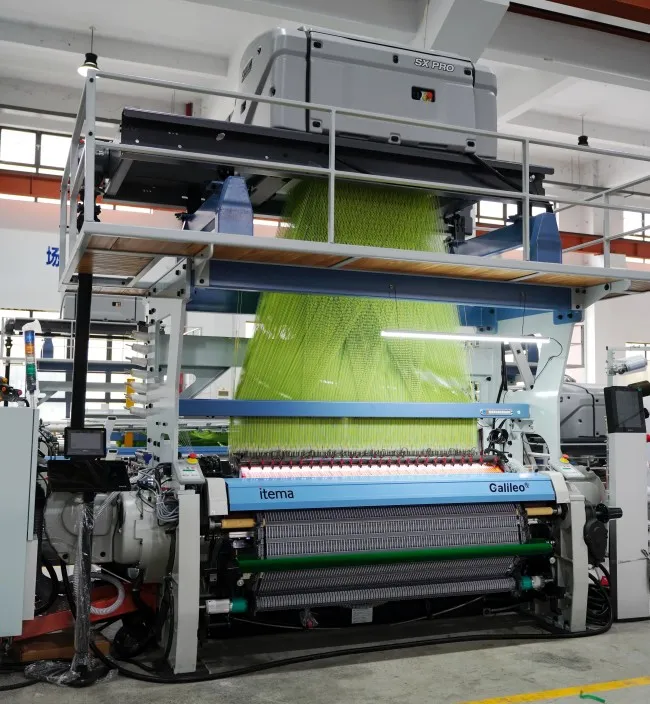

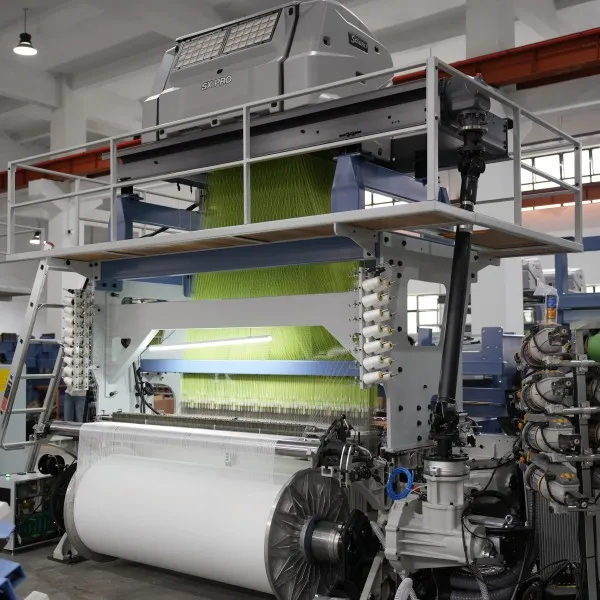

The core build combines an 8-color rapier loom, electronic jacquard, thermal cutting and ironing. We choose the final jacquard head, cutter, voltage and accessories from your label requirements.
| Part | Main 8-color taffeta build |
|---|---|
| Base loom | Itema R9000 rapier loom, 8-color electronic selector |
| Speed | 600 rpm |
| Working width | 1680 mm |
| Cycle | 4 taffeta repeats for 2,304 hooks; 1 repeat = 40 cm |
| Weft density | 5–200 picks/cm |
| Take-up and let-off | Electronic take-up, microprocessor-controlled electronic let-off with tension device |
| Jacquard | STAUBLI SX Pro, 2,304 hooks, TC8 control system |
| Thermal cutting | TCS thermal cutting system |
| Power supply | 380V three phase, 50Hz (+10% tolerance) |
| Footprint and weight | About 5700 × 2200 × 3950 mm; about 6500 kg |
These figures belong to the main 8-color taffeta build. If your label needs a different jacquard head, cutter or electrical setup, we adjust the quote.
Fine letters, dense damask and photo-like patterns need more jacquard hooks. Simple care labels and standard brand marks need fewer.
| Jacquard head | Hooks | Controller | Best use |
|---|---|---|---|

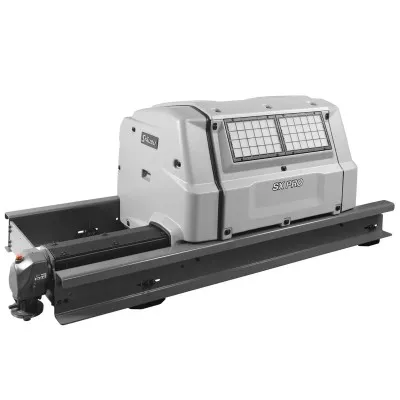

| Staubli SX Pro | 2304 / up to 2688 | TC8 | Standard taffeta, satin and care labels |

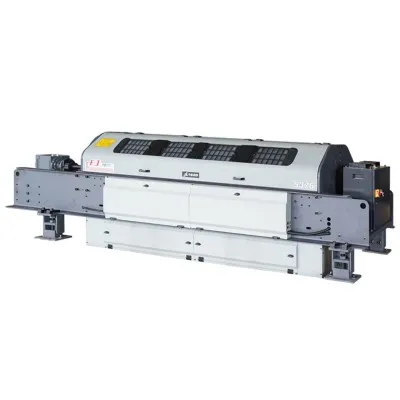

| Changfang JL1620 | up to 2688 | CFJC320 | Standard labels where cost control matters |
| Staubli LX Pro | up to 7680 | TC8 | Larger repeats and more complex designs |

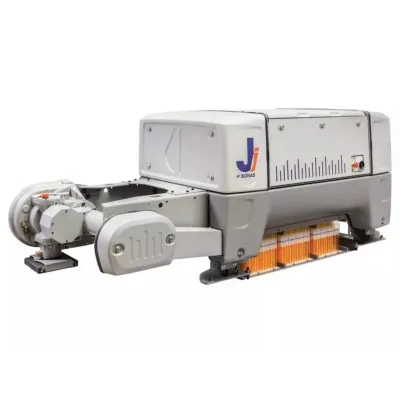

| Bonas | up to 11520 | Ci | Fine logos, small text and high-density damask |
We choose the jacquard head after checking logo detail, text size, repeat and label width.
The same loom weaves taffeta, satin, damask and jacquard label tapes. The yarn, density, jacquard head and finishing change with the label you sell.

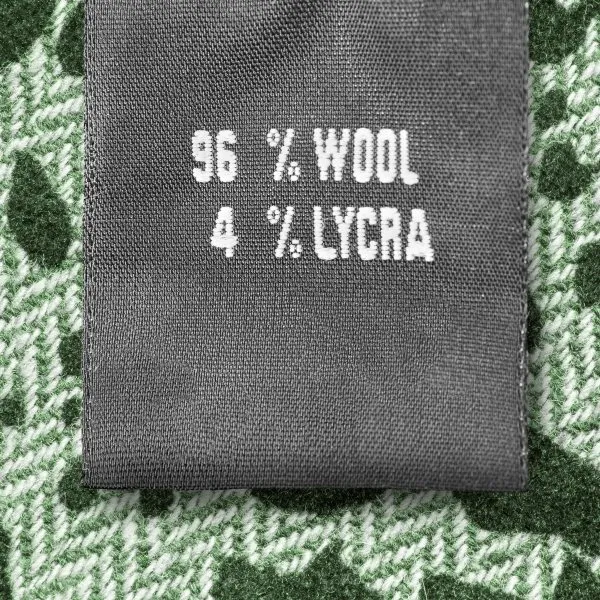

Flat and firm labels for care labels, size labels and standard garment labels.
Smooth woven labels with a glossy face for main brand labels.
Dense woven labels for detailed logos, small text and premium brand marks.
Continuous logo tapes for bags, lanyards, packaging and decorative trims.
Image-like woven effects when the label design needs more visual detail.
Not sure whether your clothing label should be damask, satin or taffeta? Read our woven labels for clothing guide.

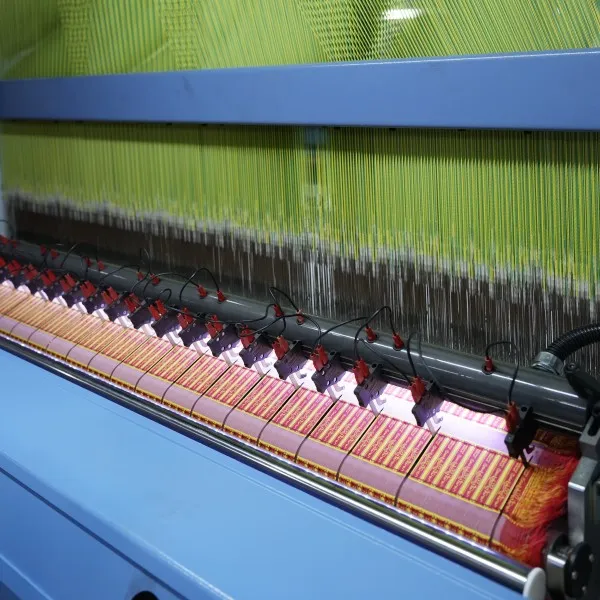

The loom first weaves the labels as a continuous strip. The thermal cutter seals and separates each piece, and the ironing plate lifting system keeps the label flat.

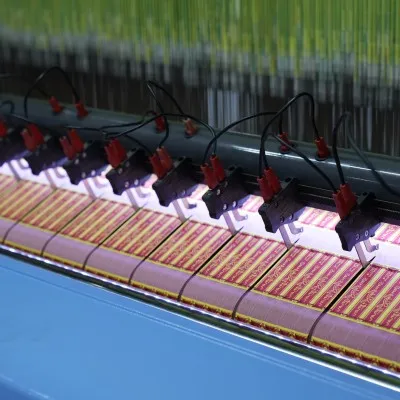

The TCS system tracks fabric movement and adjusts cutter temperature for sealed, soft label edges.

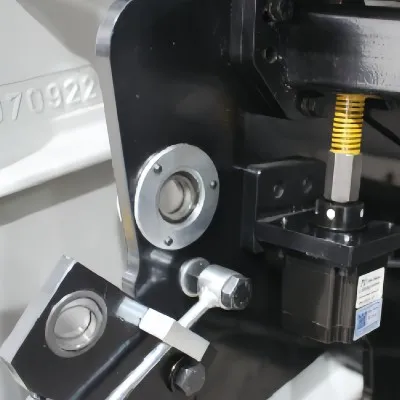

Digital motor control supports precise lifting, helping each label stay flat with a clean finish.
The finish style depends on how the label is sewn or packed:

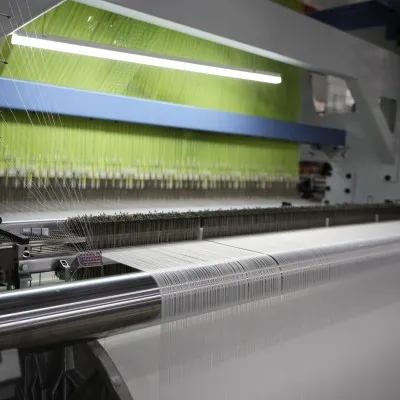

See how the yarn feeds into the loom, how the jacquard forms the pattern and how the woven strip moves into take-up.
The loom is only one part of the delivery. Before packing, we confirm the ordered jacquard, cutter, ironing unit, electrical setup and accessory list, then run the machine against the confirmed order details.
We review the logo detail, finish style and electrical needs before selecting the jacquard hooks, working width and cutter.
Before packing, our team runs the machine and checks it against the confirmed order details.
We confirm the thermal cutter, cutter wire, harness cord, healds, drop wires and tools that should ship with the machine.
We agree the installation and operator-training plan with the order, so your team knows what to prepare before the machine arrives.
The price changes with the jacquard head, working width, cutter, ironing unit, electrical setup and accessories. Send the details below and we will return with a recommended configuration and quote.
Base loom, hook range and key electrical setting for your label.
Finishing parts matched to the finished label style.
Spare parts, packing, export documents and trade terms for the order.
A machine quote prepared from your finished label, not a generic price list.
Jacquard head, working width, color count, cutting, ironing, electrical setup and accessories decide the price. We quote after reviewing the label requirements.
It weaves thread-formed woven labels such as taffeta labels, satin labels, damask labels, care labels, brand labels and jacquard label tapes.
It is for woven labels. The logo is formed by yarn on the loom. Printed labels use ink on ribbon and need a different process.
We check the logo detail, small text, repeat and label width. Simple care labels need fewer hooks; damask logos and small lettering need a higher hook count.
Send artwork or a label photo, finished size, color count, yarn or material, finish style, voltage and destination.
Yes. The thermal cutting system seals and separates the woven strip, and the Ironing Plate Lifting System helps keep each label flat after weaving.
We start from the main 8-color taffeta build and adjust the jacquard head, cutter, voltage and accessories based on label requirements.
We supply new configured label-weaving machines rather than used looms. If you are comparing options, send your label requirement and we can explain the differences in configuration, parts and support.
The price depends on jacquard head, working width, color count, cutting, ironing, electrical setting and accessories. We quote after reviewing the label requirements.
Send artwork or a clear woven-label photo with width, colors, finish style and voltage. We will check the jacquard head, cutter and accessories before quoting.
